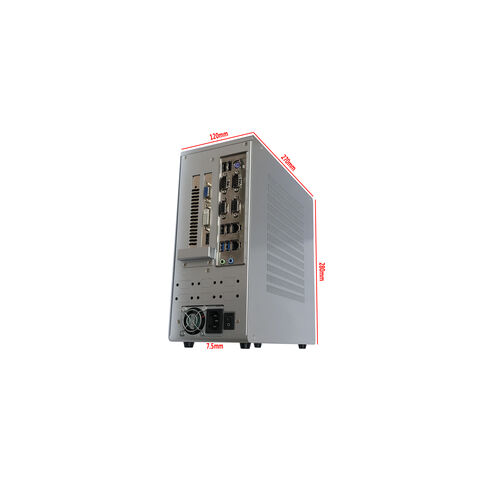

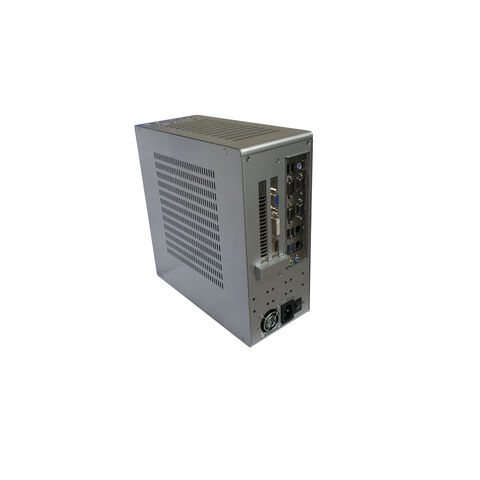

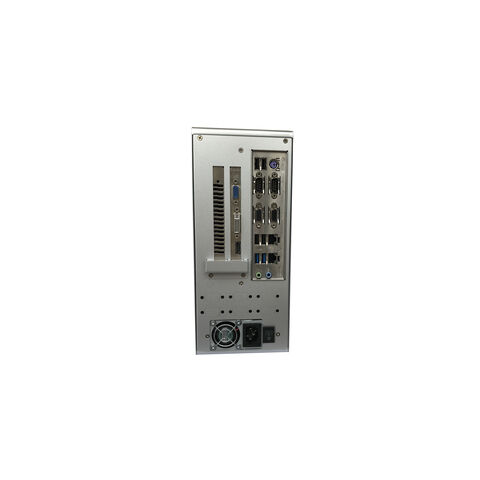

Intel industry pc with H310 chipset i7 8700 realtek8111H PCIE 16X for industry computer
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.
Product Attribute
Interface:
DisplayPort, D-Sub(VGA), HDMI, RS232C, USB, USB-C
Processor:
Intel
RAM:
16 GB, 32 GB, 64 GB
Video memory type:
Gddr4
Video card:
Intel uhd graphics
Use:
Industry
Ram type:
Ddr4
Products status:
New
Product certifications:
CE, FCC, CCC, UL
Processor brand:
Intel core
Private mold:
YES
Plugs type:
Cn, Us, Eu, Uk, Au, Jp
Operation system:
Windows 10, Linux
Mouse keyboard:
No
Management certifications:
ISO, BSCI, FSC, SEDEX, GMPC, SA8000, BRC, GRS, IATF 16949, FAMA, ICTI, GMP, AEO, HACCP, FSSC22000, WCA, TCCC, SQP, SLCP, SCAN
Hard drive type:
Ssd, Hard drive
Graphics card type:
Integrated card
Feature:
Stocked
Color:
Black, Silver
Chipset type:
Intel
Application:
Industrial
After-sale service:
Repair
Description
Product Description:
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.

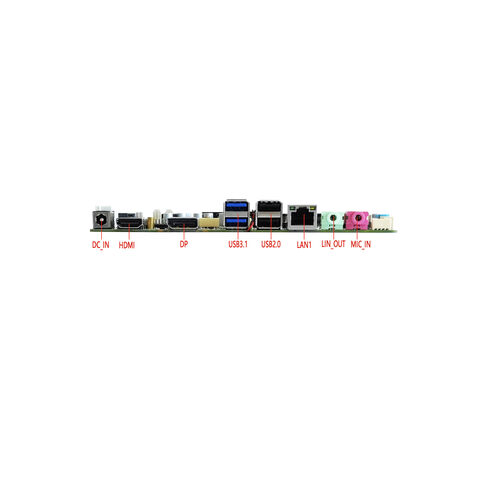

| Motherboard size | 170mm*170mm*18mm(reality thickness depend on radiator ) | ||
| CPU | Support Coffee Lake 8th Gen,9th Gen Platform 1151pin i3,i5,i7 | ||
| Chipset | Intel H310 Chipset | ||
| Power supply | 1*DC_IN | Support 12V/19V Power,DC head diameter 2.5MM Motherboard full comsumption power is about 90W,Suggest use 12V/10A or 19V/6A above power adapter. |
|
| 1*DC_ATX(4Pin) | |||
| Storage | 2*SODIMM Ram slot | NB-DDR4 Ram,support 2133/2400MHZ memory,Max support 32G | |
| Ethernet | 1*LAN port/2*LAN port | Realtek 8111H Gigabit network card chip,Support Network wake-up and PXE No disk startup function | |
| 1*MINI_PCIE port | Support WIFI/3G/4G/Bluetooth module | ||
| Display function | Graphic card | Intel HD Graphics 630 super core graphics controller,support Single display, dual display/three display copy, Dual display/three display extensions,single display under DOS | |
| 1*DP port | Support 4K Resolution 4096/3840*2160@60Hz | ||
| 1*HDMI 1.4 port | Support 4K Resolution 4096/3840*2160@30Hz | ||
| 1*HDMI_CON pin | Support 4KResolution 4096/3840*2160@30Hz | ||
| 1*LVDS pin | Support resolution 1920*1080@60HZ (30Pin,2*15Pin,2.0mm) | ||
| 1*LVDS_PWR pin | LVDS working voltage control Pin (6Pin,2*3Pin,2.0mm) | ||
| 1*INVERT pin | LVDS backlight brightness control pin (6Pin,1*6Pin,2.0mm) | ||
| USB function | 2*USB3.1 Gen1 port | Rear standard USB3.1 Gen1 port,Maximum transmission speed 5Gbps(500MB/s) | |
| 2*USB2.0 port | Rear standard USB2.0port,Maximum transmission speed 480Mbps(60MB/s) | ||
| 1*F_USB1 pin | Front USB2.0 pin,One group 2*USB2.0 (9Pin,2*5Pin,2.54mm) | ||
| 1*F_USB2 pin | Front USB2.0 pin,One group 2*USB2.0 (9Pin,2*5Pin,2.54mm) | ||
| Audio Function | Integrated Realtek ALC662 HD Digital audio decoder, 6-channel high fidelity audio controller | ||
| 1*LINE_OUT port | Support Audio output(green) | ||
| 1*MIC_IN port | Support Microphone input(red) | ||
| 1*INT_SPK pin | power amplifier Support 8Om5W Speaker output (4Pin,1*4Pin,2.0mm) | ||
| 1*F_AUDIO pin | Standard Audio Pin (9Pin,2*5Pin,2.54mm) | ||
| Hard disk | 1*MSATA port | Support MINI_SATA hard disk,support MSATA 3.0 | |
| 1*SATA1 port | Standard SATA disk port,support SATA 3.0 | ||
| 1*SATA_PWR pin | It is hard disk power supply pin and can take the 5V,12V electricity. (4Pin,1*4Pin,2.54mm) | ||
| Switch | 1*F_PANEL pin | switch,power LED, Hard disk LED,restart pin (9Pin,2*5Pin,2.54mm) | |
| Other I/O | 1*COM1 pin | Support standard RS232/RS422/RS485 optional (9Pin,2*5Pin,2.54mm) | |
| 1*COM2 pin | Support standard RS232 (9Pin,2*5Pin,2.54mm) | ||
| 1*COM3~6 pin | Standard RS232 (39Pin,2*20Pin,2.0mm) | ||
| 1*JCOM1/2 pin | COM1/2 the 9th pin power 0V/5V/12V (6Pin,2*3Pin,2.0mm) | ||
| 1*SIM_CARD slot | Support SIM card,when use 3G/4G,will need SIm card | ||
| 1*CLR_CMOS pin | CLR_CMOS Motherboard zero clearing,discharge pin (3Pin,1*3Pin,2.0mm) | ||
| 2*FAN pin | Fan pin (3Pin,1*3Pin,2.54mm) | ||
| 1*GPIO_CN pin | GPIO control pin (10Pin,2*5Pin,2.0mm) | ||
| 1*PCI-E 16X port | Optional with standard PCI-E interface,can link to dedicated graphic card | ||
| Working environment | working temperature :-20ºC~60ºC; Working humidity:5%~95% relative humidity, No condensation | ||
| BIOS | AMI BIOS,Support Power up,RTC,Intelligent identification of remote switching equipment | ||
| Watch Dog | Watchdog programming,Support Hardware reset function(256level,0~255second) | ||
| Operating system | Support Windows 10 64bit,Linux etc. | ||
Additional information
| Weight | 1,5 kg |
|---|---|
| Dimensions | 12 × 27 × 28 cm |
