Industrial PC NEW HOT SALE Ultra5 RJ45 LAN M2-WIF WIN11 DDR5 96gb M.2NVME VGA HDMI OEM/ODM For Self-service terminal
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.
Product Attribute
Interface:
DisplayPort, D-Sub(VGA), HDMI, RS232C, USB
Processor:
Intel
RAM:
16 GB, 32 GB, 4 GB, 64 GB, 8 GB, 96GB
Description
Product Description:
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.
-
Product spec.

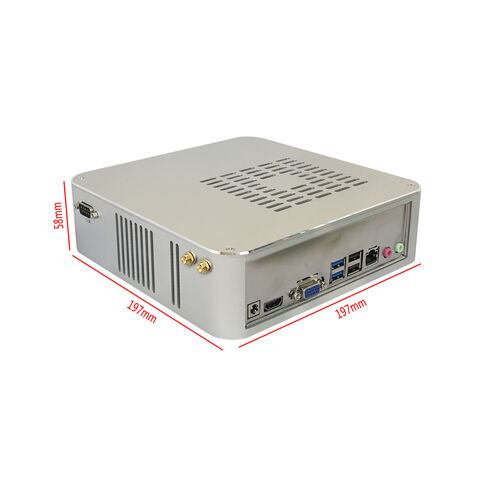

| Size | 197cm（L）*197cm（W）*57cm（H) |
| CPU | Intel Meteor Lake 14th generation Ultra 5, Ultra 7, Ultra 9 U/H series CPU |
| Memory | NB-DDR5 memory，support 4800/5600MT/s memory，up to support 96GB |
| Storage | 1*M.2-SATA/PCIE port,1*SATA1 port,1*SATA_PWR pin. |
| Power | The inner diameter of the DC head is 2.5MM and supports 12V / 19V The maximum power consumption of U series CPU is 57W, and it is recommended to use 12V 7A or 19V5A; H series CPU maximum core frequency power consumption is 115W, it is recommended to use 12V 10A or 19V 6.3A above the power supply; |
| Ethernet | 1xRealtek 8111H 10/100/1000Mbps RJ45 LAN;1*M2-WIFI port,1*4G/5G-M.2 port,Option 2xLAN. |
| Processor Graphics | Intel(R) UHD Graphics Hypercore graphics card, Support up to 4 displays. |
| HD Audio | Integrated HD Audio chip. 1xLine_out, 1xMic_in, 1xINT_SPK, 1xF_AUDIO. |
| Expansion Slot | 1xMINI PCIE slot; Support WIFI/3G/4G/GPS,etc. |

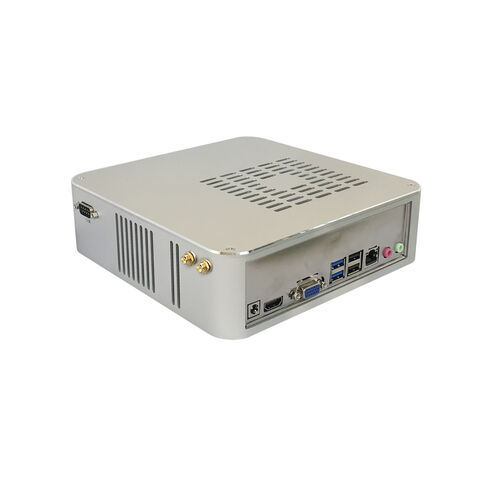

| Rear I/O | 1xDC Jack, 1xVGA/DP, 1xHDM2.0, 2xUSB2.0, 2xUSB3.2, 1xLAN, 1xLine_out, 1xMic_in. |
| Internal Connector | LVDS/EDP, 6xUSB, F_PANEL, AUTO_SW, 2 or 4 or 6 or 10xCOM,SIM_CARD slot, GPIO, etc. |
| Form Factor | 197x197x37mm(LxWxH) |
| Environment | Operating temperature: -10℃~60℃;
Working humidity: 5%~95% Relative humidity, no condensation. |
| Support OS | Win 10, 11, Linux. |
