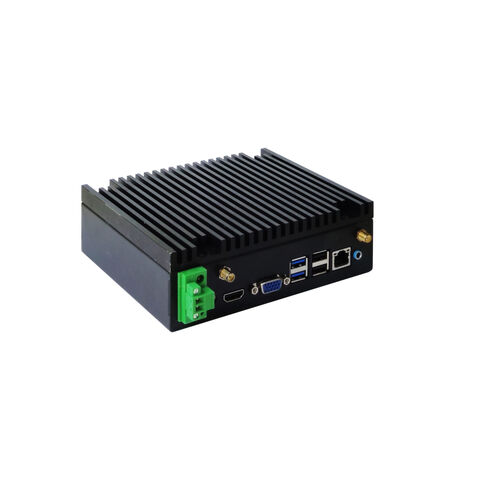

fanless industry computer with 2LAN 6USB 6USB support J1800 J1900 J4125 for ipc
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.
Product Description:
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.
Key Specifications/ Special Features:
Products Description
Pc model | M219 M219SE | |

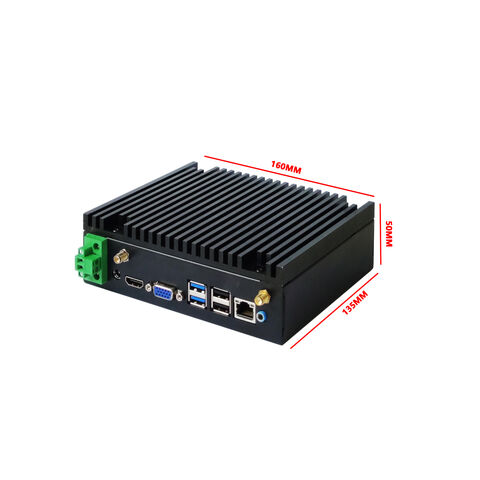

Pc size | 160MM*135MM*50MM(L*W*H) | |
color | Black | |
Inside board | M219SE | |
Motherboard Dimension | 145*100*18mm(L*W*H) | |
Processor | Support Intel Celeron dual cores 2.41GHz J1800 CPU; Support Intel Celeron quad cores 2.0GHz J1900 CPU; Support Intel Pentium quad cores 2.41GHz J2900 CPU. |
|
Chipset | Intel Bay trail SOC Chipset | |
Power Supply | 1*DC_JACK | DC port size:5.5*2.5MM;Support DC 12V; The motherboard full load power consumption is about 25W; Recommend 12V 5A and above power adapter. |
Memory | 1*NB-DDR3L 1333/1600MHz 1.35V Memory slot,up to 8GB RAM. | |
Display Function |
Integrated Intel HD Graphics in CPU; Support single display,dual display copy/expansion,single display under DOS. |
|
1*VGA_OUT pin | Support resolution 1920*1080@60Hz (12Pin,1*12Pin,2.0mm) | |
1*VGA DB15 interface | Support resolution 1920*1080@60Hz | |
1*HDMI 1.4 interface | Support resolution 1920*1080@60Hz | |
1*LVDS pin | Support resolution 1920*1080@60Hz (30Pin,2*15Pin,2.0mm) | |
1*EDP pin | Support resolution 1920*1080@60Hz (30Pin,2*15Pin,2.0mm) | |
The LVDS,EDP pins cannot exist at the same time. Support LVDS (Default); Option EDP. |
||
1*INVERT1 pin | LVDS backlight switch control pin (6Pin,1*6Pin,2.0mm) | |
1*LVDS-PWR pin | LVDS voltage control pin (6Pin,2*3Pin,2.0mm) | |
Ethernet | 1*RJ45 LAN | RTL8111H 1000Mbps LAN chip; Support Wake on LAN,PXE function. |
1*Mini-PCIE interface | Support WIFI/3G/4G/Bluetooth/GPS,etc. | |
Hard Disk | 1*SATA1 interface | Standard SATA2.0 hard disk interface. |
1*SATA-PWR pin | It is hard disk power supply pin and can take the 5V,12V electricity. (4Pin,1*4Pin,2.54mm) |
|
1*MSATA interface | Standard MSATA 2.0 | |
Sound Function |
Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller. | |
1*LINE_OUT interface | Support AUDIO output | |
1*F-AUDIO pin | Standard Audio pin (9Pin,2*5Pin,2.0mm) | |
1*JAMP pin | This is the amplifier pin. It supports 8 Ω 5W speaker dual channel output. (4Pin,1*4Pin,2.0mm) |
|
1*SPDIF pin | Digital Audio pin (3Pin,1*3Pin,2.54mm) | |
USB Function | 1*USB3.0 interface | Rear standard USB3.0 interface |
3*USB2.0 interfaces | Rear standard USB2.0 interface | |
1*F_USB2 pin | Front USB2.0 pin;One group has 2*USB2.0 (9Pin,2*5Pin,2.0mm) | |
1*F_USB3 pin | Front USB2.0 pin;One group has 2*USB2.0 (9Pin,2*5Pin,2.0mm) | |
Switch | 1*F_PANEL pin | Switch, power supply light, hard disk light, restart pin. (9Pin,2*5Pin,2.0mm) |
Serial Port |
COM1 pin | Option standard RS232/422/485 (9Pin,2*5Pin,2.0mm) |
COM2 pin | Standard RS232 (9Pin,2*5Pin,2.0mm) | |
COM3~6 pin | Standard RS232 (39Pin,2*20Pin,2.0mm) | |
1*JPCOM1 pin | Control the 9th pin of the COM1 to choose optional 0V/5V/12V. (6Pin,2*3Pin,2.0mm) |
|
1*JPCOM2 pin | Control the 9th pin of the COM2 to choose optional 0V/5V/12V. (6Pin,2*3Pin,2.0mm) |
|
Other I/O |
1*SIM card slot | Support SIM card. A SIM card is required when using 3G/4G function. |
1*CLR_CMOS pin | Motherboard discharges,clears pin. (3Pin,1*3Pin,2.54mm) | |
1*FAN1 pin | CPU Fan pin;Does not support temperature control. (3Pin,1*3Pin,2.54mm) |
|
1*J_GPIO pin | GPIO control pin (10Pin ,2*5Pin,2.0mm) | |
Operating Environment |
Operating temperature:-20℃~60℃; Working humidity:5%~95% Relative humidity, no condensation. |
|
BIOS | AMI BIOS;Support power on,timing switch,remote switch,intelligently identify devices. | |
Operating System | Support Windows 10,Windows 8,Windows 7,Linux,etc. |

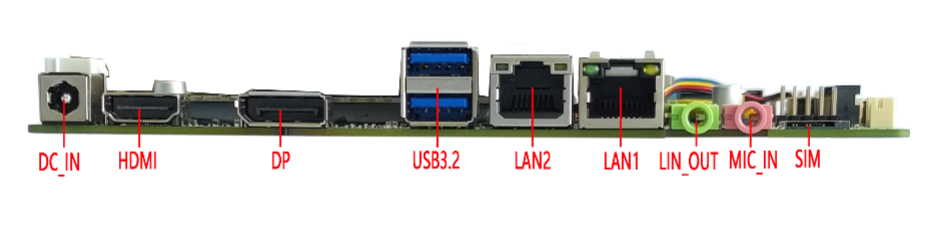

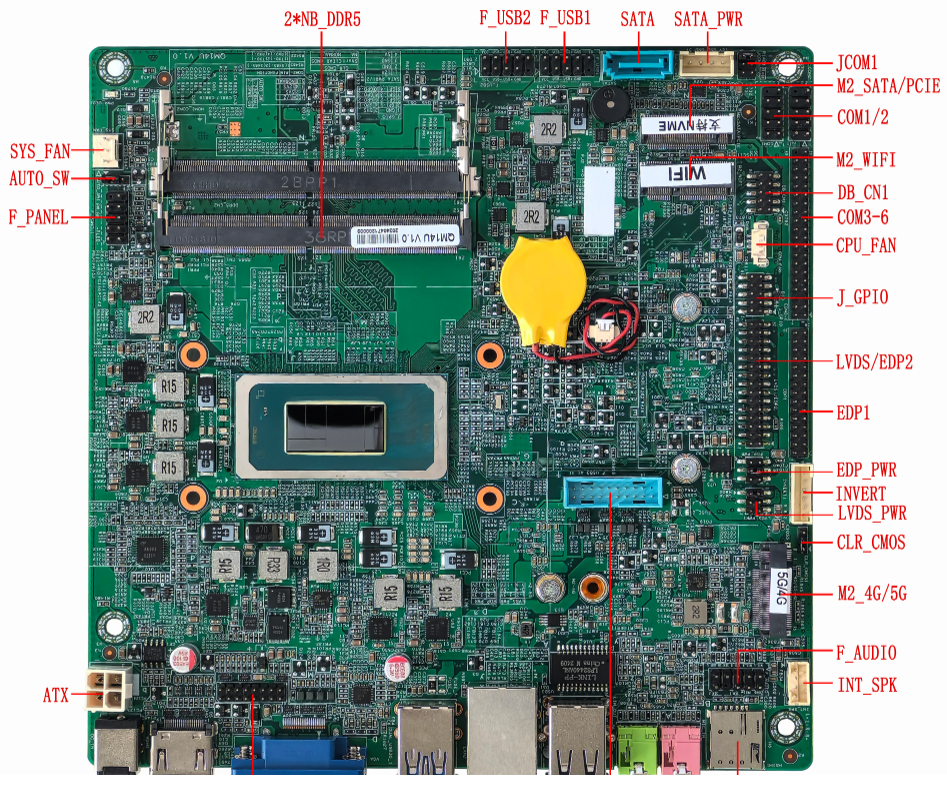

Power supply interface:
Motherboard DC interface specification 5.5 * 2.5, a 4 Pin ATX power supply interface;
Motherboard power supply support of 12V or 19V;
The maximum power consumption of U series CPU is 57W, and it is recommended to use 12V 7A or 19V5A or above;
H series CPU maximum core frequency power consumption is 115W, it is recommended to use 12V 10A or 19V 6.3A above the power supply;
Display port:
1. Motherboard VGA/DP, HDMI, HDMI_CON pin, EDP 1, LVDS 1/EDP 2 support single display, double/three-developing/four-development replication, double/three/four-development extension, SHELL under double display;
2. Motherboard VGA interface and DP interface are optional interfaces. VGA interface is supported by default, and DP interface can be changed;
3. DP support DP + + (DP cable and DP HDMI/active cable) support 4K resolution 4096/3840*2160@60Hz;
4. Motherboard HDMI interface supports HDMI 2.0 with 4K resolution 4096/3840*2160@60Hz; HDMI_CON pin is independent signal and supports 4K resolution 4096/3840*2160@60Hz;
5. Motherboard LVDS 1/EDP 2 pin support LVDS 1 by default, can be changed to support EDP 2, common pin;
6. The motherboard can be modified to support dual EDP; EDP 1, EDP 2; EDP 1 EDP-C (30 Pin backlight); EDP 2 (EDP-B 20 Pin backlight); EDP 1/EDP 2 supports 4K resolution 4096/3840*2160@60Hz;
M.2:
1. Motherboard M.2-WIFI supports Key-E interface M.2 2230 WiFi/Bluetooth module, unchangeable M.2 hard disk;
2. The motherboard M.2-4G/5G supports the Key-B interface M.2 5G (3052/3042) module or the M.2 4G (3042) module;
3. Motherboard M.2-SATA/PCIE supports Key-M interface M.2 2280 hard disk; default supports NVME (PCIE) protocol and SATA protocol;
USB port:
1. Motherboard support 10USB by default (4*USB3.2 Gen1,6*USB2.0);
2. All USB interfaces and pins of the motherboard default S power (not charged after shutdown), can be changed to A power (charged after shutdown);
COM port:
1. Motherboard optional supports 2/6*COM; COM1 optional supports RS232/RS422/RS485 with BIOS setting;
2. Motherboard COM1 can set the ninth foot output 0V/5V/12V through the JCOM 1 jump cap, with the default 0V;
3. All serial ports can be modified by the hardware to support TTL;
Network card:
Single network: Intel I219V Gigabit network card is supported by default;
Dual network: support Intel I219V+Realtek 8111H Gigabit network card; irreversible POE power supply;
Sound card:
Motherboard supports Realtek ALC897 sound card by default, not USB sound card
Weight | 1,0 kg |
---|---|
Dimensions | 16 × 13,5 × 5 cm |
