Fanless Industrial Mini PC with Intel Core i3 Processor
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.
Product Attribute
Display Type:
CRT, LCD, LED, OLED, Touch Screen
Feature:
No Monitor
Processor:
Intel
Description
Product Description:
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.
Key Specifications/ Special Features:
Products Description
Ordering Information:
| Option Intel CPU | LAN (RJ45) |
COM | USB2.0 | USB3.0 | SSD | Memory | Power |
| Support Intel 3rd Generation Core i3, i5, i7 | 2 | 6 | 4 | 2 | 1xSATA3.0 1xSATA2.0 1xMSATA |
1*NB-DDR3 MAX 8G |
+12V |
| Support Intel 3rd generation processors (FCBGA1023 Socket) |
||||||
| CPU Model | Intel CPU | Cores | Base Frequency (GHz) | Max Turbo Frequency (GHz) | TDP (W) | CPU Graphics |
| i3-3217U | Core i3 | 2 | 1.8 | / | 17W | Intel HD Graphics 4000 |
| i3-3227U | 2 | 1.9 | / | 17W | Intel HD Graphics 4000 | |
| i5-3317U | Core i5 | 2 | 1.7 | 2.6 | 17W | Intel HD Graphics 4000 |
| i5-3337U | 2 | 1.8 | 2.7 | 17W | Intel HD Graphics 4000 | |
| i5-3427U | 2 | 1.8 | 2.8 | 17W | Intel HD Graphics 4000 | |
| i5-3437U | 2 | 1.9 | 2.9 | 17W | Intel HD Graphics 4000 | |
| i7-3517U | Core i7 | 2 | 1.9 | 3.0 | 17W | Intel HD Graphics 4000 |
| i7-3537U | 2 | 2.0 | 3.1 | 17W | Intel HD Graphics 4000 | |
Specification:
| Industrial PC Model |
IPC6000-6COM-2LAN-6USB Options: IPC6000-6COM-2LAN-4USB-1LPT IPC6000-6COM-1LAN-6USB-1LPT IPC6000-6COM-1LAN-8USB IPC6000-2COM-2LAN-6USB IPC6000-2COM-1LAN-8USB IPC6000-2COM-1LAN-6USB-1LPT |
|
| Motherboard Model |
I3HGP I5HGP I7HGP | |
| Appearance | Color: Black Case material :Aluminium Size: 234mm（L）*205mm（W）*53mm（H） | |
| Cooling | Fanless | |

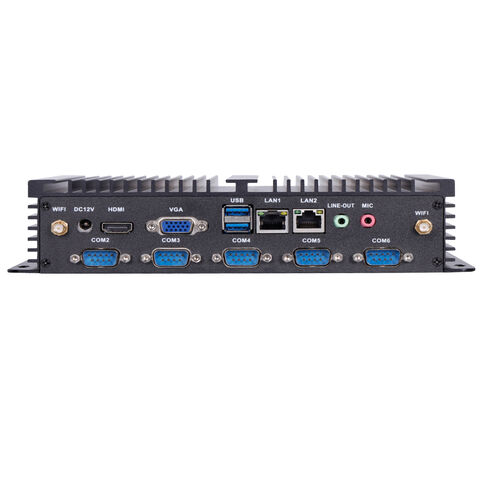

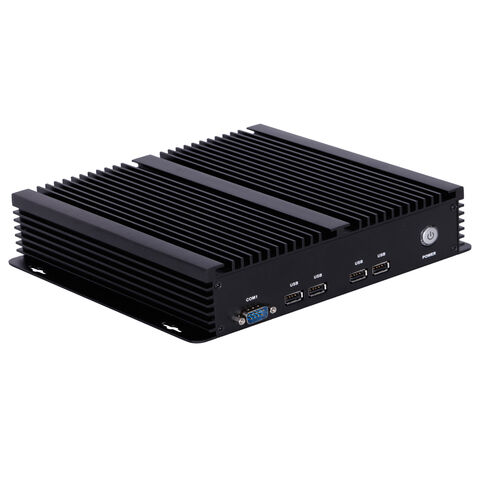

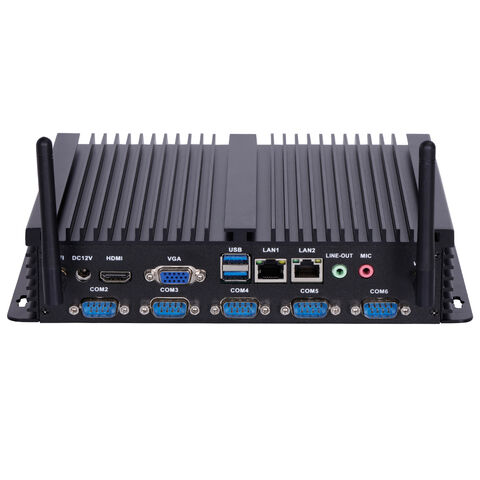

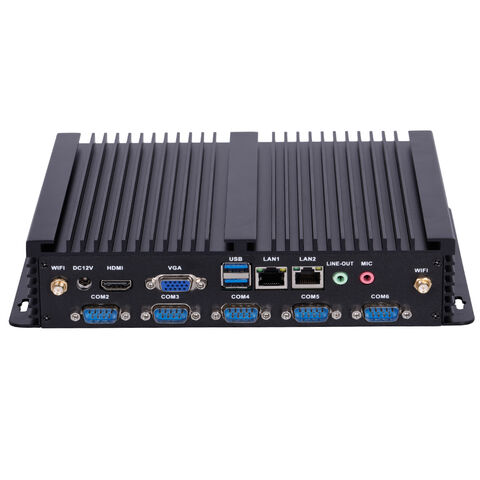

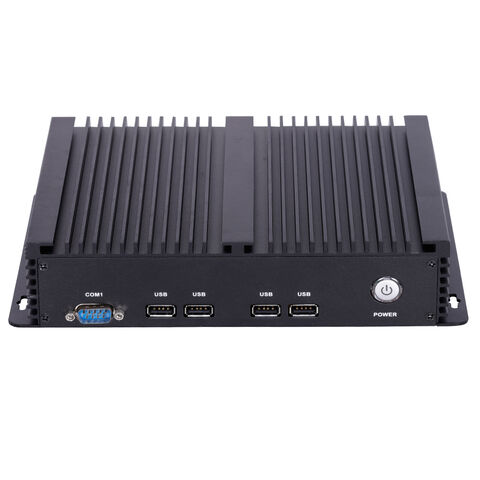

| MINI PC I/O | 2*1000M Lan 6*COM,2*USB3.0, 4*USB2.0, 1*HDMI 1*VGA, 1*DC 12V 1*Line-Out , 1*Mic-in,wifi holes,power button. | |
| CPU | I3HGP: Support Intel Core i3-3217U processor; I5HGP: Support Intel Core i5-3317U processor; I7HGP: Support Intel Core i7-3517U processor. |
|
| Chipset | Intel 6 series Chipset：HM65, HM67, QM67,etc; Intel 7 series Chipset：HM70, HM76, HM77, NM70, QM77,etc. |
|
| Memory | 1*NB-DDR3 SODIMM memory slot, support 1600MHz memory, low voltage 1.35V, maximum support 8GB | |
| Storage | 1*MSATA port | Support MSATA3.0 |
| 1*SATA port | Standard SATA2.0 hard disk interface | |
| 1*SATA port | Standard SATA3.0 hard disk interface | |
| Power supply | 1*DC_IN | Support DC 12V/19V(Default); the inner diameter of the DC head is 2.5MM Power consumption: 40W; Recommend 12V 5A and above power adapter; |
| 1*DC_ATX (Optional 1*4Pin Phoenix terminal custom, unwired by default) |
||
| Display function | Integrated Intel® HD4000 graphics controller | Support single display,dual display copy/expansion,single display under DOS. |
| 1*VGA DB15 port | Support resolution 1920*1080@60HZ | |
| 1*HDMI 1.4 port | Support 4K resolution 4096/3840*2160@30HZ | |
| Internet function | 2*LAN RJ45 port (1*LAN optional) |
Realtek 8111E Gigabit Ethernet chip supports Wake-on-LAN and PXE function If you need 1*LAN, please tell us in advance |
| 1*Mini-PCIE port | Support WIFI/3G/4G/GPS/Bluetooth module, etc. | |
| Sound function | Integrated Cmedia HS_100B USB audio chip( support by default) Option: Realtek ALC662/660/892 HD digital audio chip , if you need Realtek audio chip ,please tell us in advance |
|
| 1*LIN_OUT port | Support audio output (green) | |
| 1*MIC_IN port | Support microphone input (red) | |
| USB function | 2*USB3.0 port | Rear standard USB3.0 interface |
| 4*USB2.0 port | Rear standard USB2.0 interface | |
| Single network mini pc has 6*USB2.0 | ||
| Switch function | 1*POWER button | |
| Other I/O | COM1,COM2 | Serial port, COM1 COM2 support RS232 by default COM2 supports RS232/RS422/RS485 optional If you need RS422/RS485,please tell us in advance |
| COM3~COM6 | Serial port, support RS232 | |
| Operating environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
| BIOS | AMI BIOS;Support power on, timing switch,remote switch,identify devices intelligently. | |
| Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
| Operating System: Compatible with Windows 10, Windows 8, Windows 7, Linux,etc. | ||
| Options: laser-engraving LOGO on the case Support VESA 75MM*75MM mounting,Din mounting GPIO terminal block |
||
