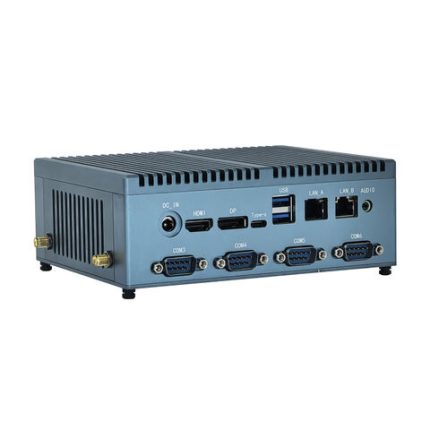

12V~24V Type-C DDR5 Memory M.2 NVME SSD Embedded Box PC with Intel Intel Alder Lake-N Processor N100 CPU for Kiosk
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.
Product Attribute
Display Type:
CRT, LCD, OLED, Touch Screen
Feature:
No Monitor
Description
Product Description:
Industrial computers are designed for harsh environments, offering high reliability, durability, and stability. They are widely used in manufacturing, automation, transportation, and more, with multiple interfaces to meet complex industrial needs.
Datasheet:
| Model | M198 |
| Installable Motherboard Model |
M198SE-2L6C (PCB model: M198SE Version: V1.0A; Specification updated: July 26, 2024) |
| Chassis | Color: Grey; Size: 160x126x57mm(LxWxH); Material: Metal. Option laser-engraving customized logo on the chassis; Option customized VESA mounting bracket. |
| External I/O Interfaces | 1xDC_IN 12V~24V, 1xDP, 1xHD-MI, 2xRJ45 LAN, 6xCOM, 1xType-C, 2xUSB3.2, 4xUSB2.0, 1xAudio, 1xPower button. |
| Option 1xLAN, 2xCOM, without COM (Choosing other chassis IO shield). | |
| Cooling System | With fan (Option Fanless) |
| Option Processor ( FCBGA1264 ) |
Support Intel Alder Lake-N, FCBGA1264 Socket Processors: N95, N97, N100, N200, i3-N305, etc |
| Memory | 1xSODIMM 4800MT/s DDR5 Memory socket, up to 16GB RAM. |
| Storage | 1xKey-M M.2 2280 SATA / NVME signal PCIE 3.0 interface. |
| Power Supply | Support DC input wide voltage 12V~24V; DC Jack 5.5×2.5mm; 40W power consumption. |
| Ethernet | 2xRealtek 8111H 1000Mbps RJ45 LAN interfaces; Option 1xLAN. Support Wake-on-LAN and PXE function. |
|
Display Function |
GPU Name: Integrated with Intel UHD Graphics in CPU; Support up to 3 displays. DP interface supports 4K resolution 4096/3840×2160@60Hz; Doesn’t support DP++. HD-MI 2.1 interface supports 4K resolution 4096/3840×2160@60Hz. Type-C interface supports USB data transmission & Display function. Built-in MIPI pin supports CSI-2 protocol, MIPI camera equipment. |
| HD Audio | Integrated Realtek ALC897 HD Audio chip; Support 1xAudio interface(Only support Line-out); Option Mic-in interface (Need to customize the chassis IO shield). |
| Expansion Slot | 1xM.2 2230 PCIE3.0 Key-E socket(Support Wi-Fi & BT module). Option I2C function (TBD). |
| Serial Port (COM Interfaces) |
6xRS232 COM interfaces ( The COM1 can be chosen RS232/RS422/RS485 by BIOS setting); Option 6xRS485 at least, if you need,please inform us in advance (Different price). Option 2xCOM or No COM (Need to customize the chassis IO shield). Option TTL. |
| Internal Pins/Slots | JAMP, F_AUDIO, F_PANEL, JATX, CLR_CMOS, GPIO, etc. |
| CMOS Battery | CR2032 3V battery with wire (Detachable) |
| BIOS | AMI BIOS supports power on,timing switch,remote switch,intelligently identify devices. Option UEFI Secure Boot; Option Trusted Platform Module (TPM) version 2.0; Option customized boot logo in OS. |
| Watch Dog | Watchdog programming; Support hardware reset function (256 levels, 0~255 seconds). |
| Operating Environment | Operating temperature: -10℃~60℃; Working humidity: 5%~95% Relative humidity, no condensation. |
| Support OS | Compatible with Windows 11 / 10, Linux. |
| Warranty period | 12 months |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
15 inch capacitive touch screen monitor 1024*768 embedded industrial monitor ip65
An industrial touchscreen is a highly durable touch display device designed for industrial environments, featuring anti-interference, dustproof, and waterproof properties. It is widely used in factory automation, machine control, and monitoring systems.
Product Attribute
Interface:
HDMI, VGA, USB
Panel Type:
IPS
Resolution:
1024*768
Factory custom 18.5 inch touch monitor wall mounted capacitive touch screen industrial monitor
An industrial touchscreen is a highly durable touch display device designed for industrial environments, featuring anti-interference, dustproof, and waterproof properties. It is widely used in factory automation, machine control, and monitoring systems.
Product Attribute
Interface:
HDMI, VGA, USB
Panel Type:
IPS
Resolution:
1920*1080

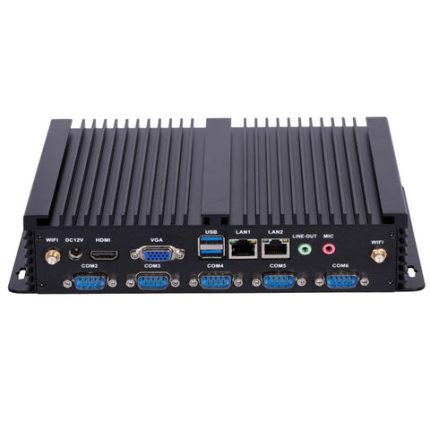

Fanless Industrial Mini PC with Intel Core i3 Processor
